TR3E107K020C0100 | Vishay

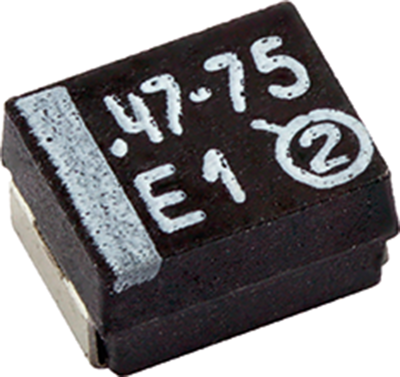

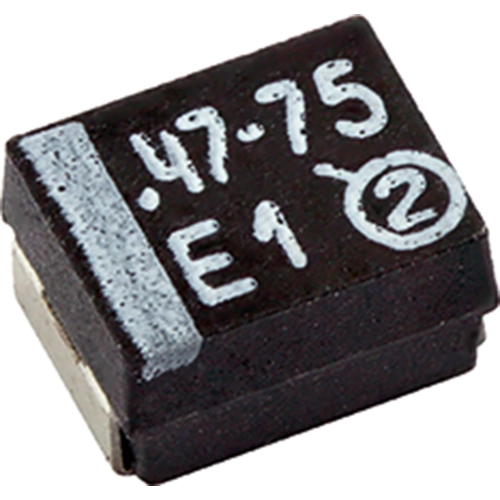

Talantum capacitor, SMD, E, 100 µF, 20 V, ±10 %, TR3E107K020C0100
Order No.: 25D939
EAN: 4099879880567
MPN:
TR3E107K020C0100
Unit Price (€ / pc.)
0.4284 € *
Standard delivery time from the manufacturer is: On Request
SMD, Tantalum capacitor, TR3E107K020C0100, Vishay
Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT™, Molded Case, Low ESR
FEATURES
- Low ESR
- High ripple current carrying capability
- Compliant terminations
- Compatible with “high volume” automatic pick and place equipment
Technical Data
- Capacity: 100 µF
- Nominal voltage: 20 V
- Size: E
- Tolerance: ±10 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 20 V | |
| Capacity | 100 µF | |

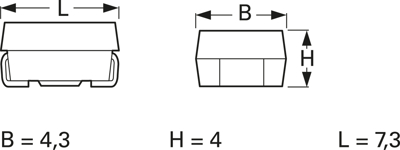

| Length | 7.3 mm | |
| Design | SMD | |
| ESR (Equivalent Series Resistance) | 100 mΩ | |
| min. operating temperature | -55 °C | |
| Size | E | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| Ripple current | 1.28 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IL |
| Customs tariff number | 85322100 |
| MSL | MSL 1 |
| Original Packaging | Reel with 400 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
