TR3A476K6R3C0800 | Vishay

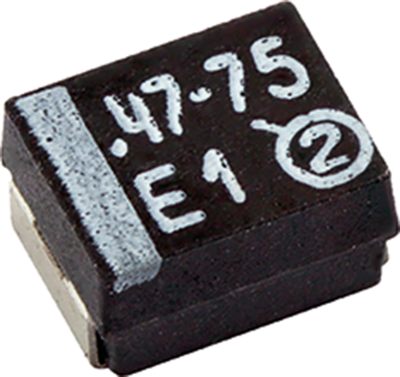

Talantum capacitor, SMD, A, 47 µF, 6.3 V, ±10 %, TR3A476K6R3C0800
Order No.: 25D912
EAN: 4099879880536
MPN:
TR3A476K6R3C0800
Unit Price (€ / pc.)
0.0524 € *
Standard delivery time from the manufacturer is: On Request
SMD, Tantalum capacitor, TR3A476K6R3C0800, Vishay
Solid Tantalum Surface Mount Chip Capacitors TANTAMOUNT™, Molded Case, Low ESR
FEATURES
- Low ESR
- High ripple current carrying capability
- Compliant terminations
- Compatible with “high volume” automatic pick and place equipment
Technical Data
- Capacity: 47 µF
- Nominal voltage: 6.3 V
- Size: A
- Tolerance: ±10 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (DC) | 6.3 V | |
| Capacity | 47 µF | |

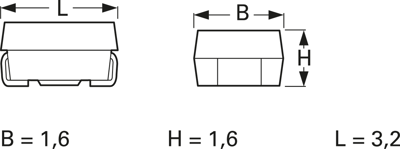

| Length | 3.2 mm | |
| Design | SMD | |
| ESR (Equivalent Series Resistance) | 800 mΩ | |
| min. operating temperature | -55 °C | |
| Size | A | |
| Tolerance | ±10 % | |
| max. operating temperature | 125 °C | |
| Ripple current | 310 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IL |
| Customs tariff number | 85322100 |
| MSL | MSL 1 |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
