Y1625100R000Q9R | Vishay
Resistor, metal foil, SMD 1206 (3216), 100 Ω, 0.3 W, ±0.02 %, Y1625100R000Q9R
Unit Price (€ / pc.)
37.9491 € *
Standard delivery time from the manufacturer is: On Request
SMD Bulk Metal® Z-foil resistors, type Vishay VSMP.
High rated power, excellent long-term stability, extremely low temperature coefficient; Temperature coefficient: ±0.2 ppm/°C. Long-term stability: ±0.005 % at 70 °C. Thickness: 0.64 mm. Operating temperatures: –55 to +125 °C.
Size 1206.

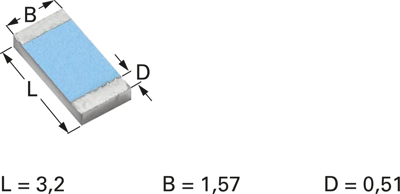

Power: 0.3 W. Dimensions: L 3.2, W 1.57, T 0.51 mm.
Technical attributes (type, resistance value, tolerance): 100R, 0.02 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| ohmic resistance | 100 Ω | |
| Tolerance | ±0.02 % | |
| Power | 0.3 W | |
| Design | SMD 1206 (3216) | |
| Temperature coefficient | ±0.2 ppm/K | |
| Technology | metal foil | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 125 °C | |
| Length | 3.2 mm | |
| Width | 1.6 mm | |
| Height | 0.64 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IL |
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
