WSLP1206R0150FEB | Vishay
Resistor, metal strip, SMD 1206 (3216), 15 mΩ, 1 W, ±1 %, WSLP1206R0150FEB
Unit Price (€ / pc.)
0.3451 € *
Standard delivery time from the manufacturer is: 18 Weeks

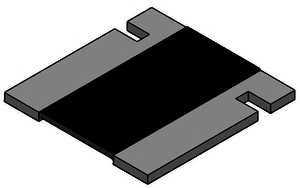

SMD metal strip resistors, size 1206, 1.0 W, tolerance 1.0 %, series Very High Power Metal Strip, type Vishay/Dale WSLP1206.
Low self-inductance, for current measurements and pulse applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 1 W | |
| Temperature coefficient | ±75 ppm/K | |
| Technology | metal strip | |
| max. operating temperature | 170 °C | |
| Tolerance | ±1 % | |

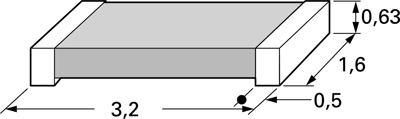

| Length | 3.2 mm | |
| Height | 0.63 mm | |
| Width | 1.6 mm | |
| min. operating temperature | -65 °C | |
| Design | SMD 1206 (3216) | |
| ohmic resistance | 15 mΩ |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IL |
| Original Packaging | Reel with 1,000 pieces |
| Customs tariff number | 85331000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
