WSL0805R0400FEA | Vishay

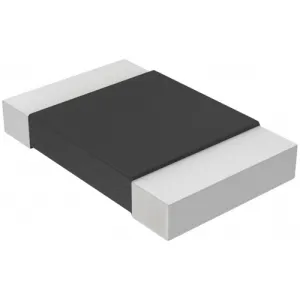

Resistor, metal strip, SMD 0805 (2012), 40 mΩ, 0.125 W, ±1 %, WSL0805R0400FEA
Unit Price (€ / pc.)
0.5117 € *
Available: 1,345 pcs.
Total Price:
51.17 € *
Price list
Quantity
Price per unit*
100 pcs.
0.5117 €
500 pcs.
0.3808 €
1000 pcs.
0.3094 €
2000 pcs.
0.2642 €
4000 pcs.
0.2285 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD metal strip resistors, 0.125 to 1.0 W, tolerance 1.0 %, series Power Metal Strip, type Vishay/Dale WSL.
Low self-inductance, for current measurements and pulse applications
0.125 W, size 0805, type WSL0805.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 0.33 mm | |
| ohmic resistance | 40 mΩ | |
| Design | SMD 0805 (2012) | |
| min. operating temperature | -65 °C | |
| Tolerance | ±1 % | |
| Length | 2.03 mm | |
| Width | 1.2 mm | |
| Temperature coefficient | ±75 ppm/K | |
| Technology | metal strip | |
| Power | 0.125 W | |
| max. operating temperature | 170 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 5,000 pieces |
| Customs tariff number | 85331000 |
| Country of origin | IL |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
