WSC69271K000FEA | Vishay
Resistor, wirewound, SMD 6927, 1 kΩ, 3 W, ±1 %, WSC69271K000FEA
Unit Price (€ / pc.)
2.2967 € *
Standard delivery time from the manufacturer is: 11 Weeks
SMD wire-wound resistors, 0.5 to 3.0 W, tolerance 1.0 %, type Vishay/Dale WSC.
Sealed, ultra-stable at different environment conditions
3.0 W, size 6927, type WSC6927.

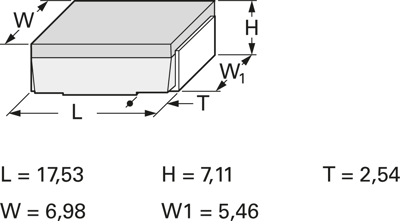

Technical specifications
| Temperature coefficient | ±20 ppm/K | |
| Technology | wirewound | |
| Height | 7.11 mm | |
| Power | 3 W | |
| Length | 17.53 mm | |
| Design | SMD 6927 | |
| min. operating temperature | -65 °C | |
| Tolerance | ±1 % | |
| max. operating temperature | 275 °C | |
| ohmic resistance | 1 kΩ |
Download
Logistics
| Country of origin | IL |
| Customs tariff number | 85331000 |
| Original Packaging | Reel with 725 pieces |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
