SMM02040C1009FB300 | Vishay

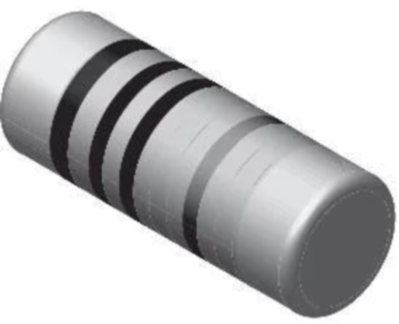

Resistor, thin film, SMD 0204, mini MELF, 10 Ω, 0.4 W, ±1 %, SMM02040C1009FB300
Order No.: 05E0004
EAN: 4099879154385
MPN:
SMM02040C1009FB300
Unit Price (€ / pc.)
0.0785 € *
Standard delivery time from the manufacturer is: 12 Weeks
Resistor, SMM02040C1009FB300, VISHAY
The SMM02040C1009FB300 is a thin film MELF resistor perfect choice for most fields of modern electronics where reliability and stability are of major concern. The typical applications in the fields of automotive, industrial and medical equipment reflect the outstanding level of proven reliability.
Features
- Advanced metal film technology
- Excellent stability in different environmental conditions
- Best in class pulse load capability
- Intrinsic sulfur resistance
Applications
- Automotive
- Telecommunication
- Industrial
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Power | 0.4 W | |
| Design | SMD 0204 | |
| max. operating temperature | 155 °C | |
| Temperature coefficient | ±50 ppm/K | |
| Technology | thin film | |
| ohmic resistance | 10 Ω | |
| Enclosure | mini MELF | |
| diameter | 1.4 mm | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Length | 3.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| Customs tariff number | 85332100 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
