MMB02070C3601FB200 | Vishay

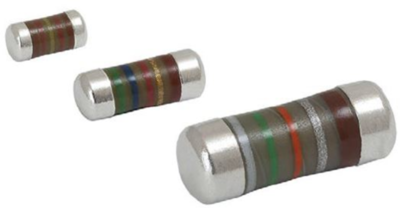

Resistor, thin film, SMD 0207, MELF, 3.6 kΩ, 1 W, ±1 %, MMB02070C3601FB200

Order No.: 04E4756
EAN: 4099879154347
MPN:
MMB02070C3601FB200
Series: MMB 0207
MMB02070C3601FB200 Vishay SMD Resistors
Image may differ
Unit Price (€ / pc.)
0.1226 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
245.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
0.1226 €

Resistor, MMB02070C3601FB200, VISHAY

The MMB02070C3601FB200 is a professional thin film MELF resistor perfect choice for most fields of modern professional electronics where reliability and stability is of major concern. The typical applications in the fields of automotive, telecommunication and medical equipment reflect the outstanding level of proven reliability.

Features

  • Advanced metal film technology
  • Best in class pulse load capability
  • Intrinsic sulfur resistance

Applications

  • Automotive
  • Telecommunication
  • Industrial
  • Medical equipment
Technical specifications
Filter Property Value
Power 1 W
Design SMD 0207
max. operating temperature 155 °C
Temperature coefficient ±50 ppm/K
Technology thin film
ohmic resistance 3.6 kΩ
Enclosure MELF
diameter 2.2 mm
min. operating temperature -55 °C
Tolerance ±1 %
Length 5.8 mm
Logistics
Property Value
Country of origin DE
Original Packaging Reel with 2,000 pieces
Customs tariff number 85332100
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
