MMB02070C1102FB200 | Vishay

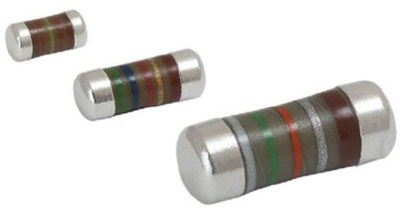

Resistor, thin film, SMD 0207, MELF, 11 kΩ, 1 W, ±1 %, MMB02070C1102FB200
Unit Price (€ / pc.)
0.1226 € *
Standard delivery time from the manufacturer is: 10 Weeks
Resistor, MMB02070C1102FB200, VISHAY
The MMB02070C1102FB200 is a professional thin film MELF resistor perfect choice for most fields of modern professional electronics where reliability and stability is of major concern. The typical applications in the fields of automotive, telecommunication and medical equipment reflect the outstanding level of proven reliability.
Features
- Advanced metal film technology
- Best in class pulse load capability
- Intrinsic sulfur resistance
Applications
- Automotive
- Telecommunication
- Industrial
- Medical equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |
| diameter | 2.2 mm | |
| Tolerance | ±1 % | |
| ohmic resistance | 11 kΩ | |
| Power | 1 W | |
| Enclosure | MELF | |
| Length | 5.8 mm | |
| Temperature coefficient | ±50 ppm/K | |
| Design | SMD 0207 | |
| Technology | thin film |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85332100 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
