MMA02040C4300FB300 | Vishay

Resistor, thin film, SMD 0204, mini MELF, 430 Ω, 0.25 W, ±1 %, MMA02040C4300FB300

Order No.: 06E628
EAN: 4099879155252
MPN:
MMA02040C4300FB300
Series: MMA 0204

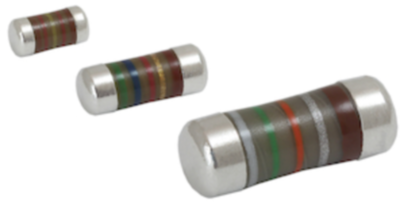

MMA02040C4300FB300 Vishay SMD Resistors Image 1
MMA02040C4300FB300 Vishay SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.1238 € *
Available: 3,748 pcs.
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1238 €
10 pcs.
0.1083 €
100 pcs.
0.0774 €
300 pcs.
0.0464 €
1000 pcs.
0.0333 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD thin-film resistor size 0204, Mini-MELF, 0.25 W, tolerance 1.0 %, type Vishay/Beyschlag MMA 0204 Professional.

Technical specifications
Filter Property Value
Temperature coefficient ±50 ppm/K
Power 0.25 W
max. operating temperature 125 °C
ohmic resistance 430 Ω
min. operating temperature -55 °C
Enclosure mini MELF
Tolerance ±1 %

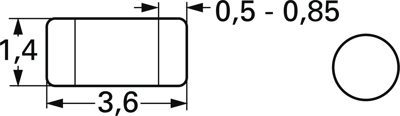

Length 3.6 mm
diameter 1.4 mm
Design SMD 0204
Technology thin film
Logistics
Property Value
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 3,000 pieces
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
