MMA02040C2702FB300 | Vishay

Resistor, thin film, SMD 0204, mini MELF, 27 kΩ, 0.25 W, ±1 %, MMA02040C2702FB300

Order No.: 06E800
EAN: 4099879155658
MPN:
MMA02040C2702FB300
Series: MMA 0204

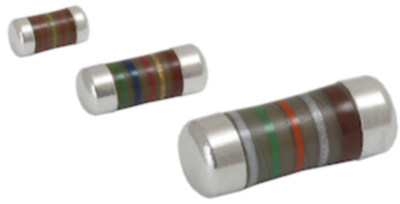

MMA02040C2702FB300 Vishay SMD Resistors Image 1
MMA02040C2702FB300 Vishay SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.0202 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
60.69 € *
Price list
Quantity
Price per unit*
3000 pcs.
0.0202 €
6000 pcs.
0.0178 €
*incl. VAT plus shipping costs
Subject to prior sale

SMD thin-film resistor size 0204, Mini-MELF, 0.25 W, tolerance 1.0 %, type Vishay/Beyschlag MMA 0204 Professional.

Technical specifications
Temperature coefficient ±50 ppm/K
max. operating temperature 125 °C
Technology thin film
min. operating temperature -55 °C
Tolerance ±1 %
Design SMD 0204
Enclosure mini MELF

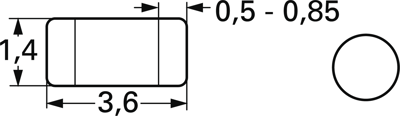

diameter 1.4 mm
ohmic resistance 27 kΩ
Length 3.6 mm
Power 0.25 W
Logistics
Country of origin DE
Customs tariff number 85332100
Original Packaging Reel with 3,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
