MCT06030C4702FP500 | Vishay

Resistor, thin film, SMD 0603 (1608), 47 kΩ, 0.1 W, ±1 %, MCT06030C4702FP500

Order No.: 07E756
EAN: 4099879196286
MPN:
MCT06030C4702FP500
Series: MCT 0603

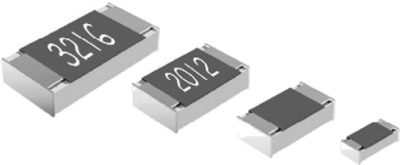

MCT06030C4702FP500 Vishay SMD Resistors Image 1

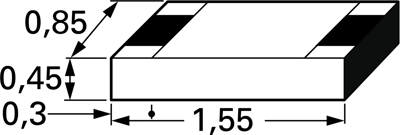

MCT06030C4702FP500 Vishay SMD Resistors Image 2
Image may differ
Unit Price (€ / pc.)
0.0167 € *
Available: 5,000 pcs.
Total Price:
83.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.0167 €

SMD thin-film resistor, MCT 0603-50 1% P5 47K, Beyschlag

Resistor, Thin film, SMD 0603, 47 kΩ, 0.1 W, ±1 %

Features

  • Approved according to EN 140401-801
  • Excellent overall stability: Class 0.5
  • Advanced thin film technology
  • Compatible with lead (Pb)-free and lead containing soldering processes
  • Lead (Pb)-free and RoHS compliant
Technical specifications
Filter Property Value
ohmic resistance 47 kΩ
Height 0.45 mm
Temperature coefficient ±50 ppm/K
max. operating temperature 125 °C
Width 0.8 mm
Technology thin film
Design SMD 0603 (1608)
Length 1.55 mm
Tolerance ±1 %
Power 0.1 W
min. operating temperature -55 °C
Logistics
Property Value
Original Packaging Reel with 5,000 pieces
Country of origin DE
Customs tariff number 85332100
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
Substance description Lead
SVHC free No
