CRCW1206510RFHEAP | Vishay

Resistor, thick film, SMD 1206 (3216), 510 Ω, 0.25 W, ±1 %, CRCW1206510RFHEAP

Order No.: 03E2242
EAN: 4099879154231
MPN:
CRCW1206510RFHEAP
Series: CRCW
CRCW1206510RFHEAP Vishay SMD Resistors

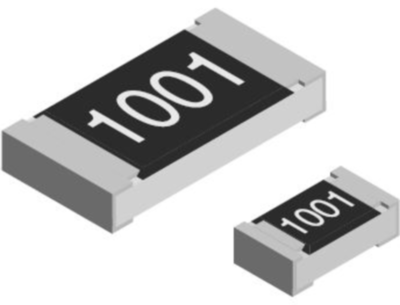

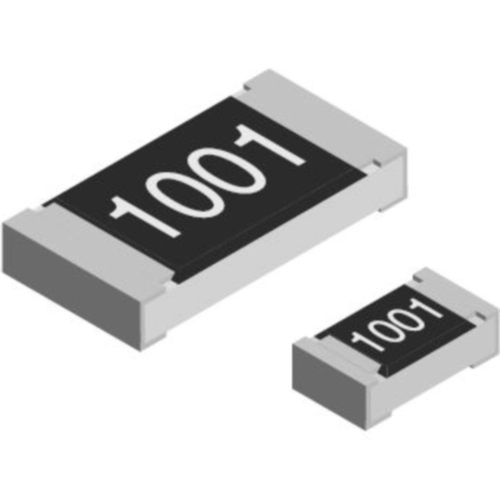

Image may differ
Unit Price (€ / pc.)
0.0583 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
291.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.0583 €

SMD Thick film resistor, CRCW1206510RFHEAP, Vishay

The pulse proof, high power thick film chip resistors series is the perfect choice for most fields of power measurement electronics where reliability, stability, high power rating and excellent pulse load performance are of major concern. Typical applications include battery management systems in automotive appliances.

Features

  • Excellent pulse load capability
  • Enhanced power rating
  • Double side printed resistor element
  • AEC-Q200 qualified

Technical Data

  • Resistance: 510 Ω
  • Size: 1206
  • Power: 0,25W
  • Tolerance: ±1 %
Technical specifications
Temperature coefficient ±50 ppm/K
Technology thick film
Width 1.6 mm
Height 0.55 mm
Power 0.25 W
Length 3.2 mm
Design SMD 1206 (3216)
min. operating temperature -55 °C
Tolerance ±1 %
max. operating temperature 155 °C
ohmic resistance 510 Ω
Logistics
Country of origin IL
Customs tariff number 85331000
Original Packaging Reel with 5,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
