CRCW060363R4FKTABC | Vishay
Resistor, thick film, SMD 0603 (1608), 63.4 Ω, 0.1 W, ±1 %, CRCW060363R4FKTABC
Unit Price (€ / pc.)
0.0068 € *
Standard delivery time from the manufacturer is: 28 Weeks

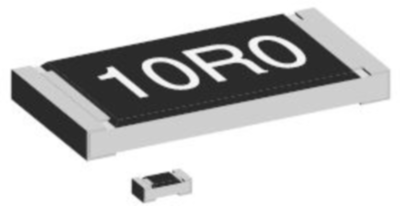

SMD Thick film resistor, CRCW060363R4FKTABC, Vishay
The pulse proof, high power thick film chip resistors series is the perfect choice for most fields of power measurement electronics where reliability, stability, high power rating and excellent pulse load performance are of major concern. Typical applications include battery management systems in automotive appliances.
Features
- Excellent pulse load capability
- Enhanced power rating
- Double side printed resistor element
- AEC-Q200 qualified
Technical Data
- Resistance: 63,4 Ω
- Size: 0603
- Power: 0,1W
- Tolerance: ±1 %
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| max. operating temperature | 155 °C | |
| Height | 0.45 mm | |
| Tolerance | ±1 % | |
| Width | 0.8 mm | |
| ohmic resistance | 63.4 Ω | |
| Power | 0.1 W | |
| Length | 1.55 mm | |
| Temperature coefficient | ±100 ppm/K | |
| Design | SMD 0603 (1608) | |
| Technology | thick film |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 5,000 pieces |
| Customs tariff number | 85332100 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
