CRCW06033K00FKEA | Vishay

Resistor, thick film, SMD 0603 (1608), 3 kΩ, 0.1 W, ±1 %, CRCW06033K00FKEA

Order No.: 02E0048
EAN: 4099879153791
MPN:
CRCW06033K00FKEA
Series: D/CRCW
CRCW06033K00FKEA Vishay SMD Resistors

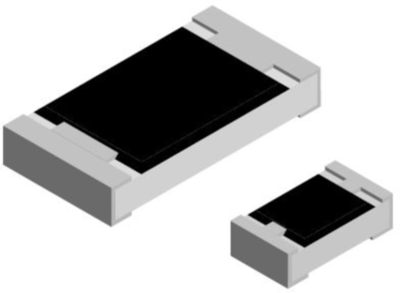

Image may differ
Unit Price (€ / pc.)
0.0063 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
126.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
20000 pcs.
0.0063 €

SMD Thick film resistor, CRCW06033K00FKEA, Vishay

The pulse proof, high power thick film chip resistors series is the perfect choice for most fields of power measurement electronics where reliability, stability, high power rating and excellent pulse load performance are of major concern. Typical applications include battery management systems in automotive appliances.

Features

  • Excellent pulse load capability
  • Enhanced power rating
  • Double side printed resistor element
  • AEC-Q200 qualified

Technical Data

  • Resistance: 3 kΩ
  • Size: 0603
  • Power: 0,1W
  • Tolerance: ±1 %
Technical specifications
Temperature coefficient ±100 ppm/K
Technology thick film
Width 0.8 mm
Height 0.45 mm
Power 0.1 W
Length 1.55 mm
Design SMD 0603 (1608)
min. operating temperature -55 °C
Tolerance ±1 %
max. operating temperature 155 °C
ohmic resistance 3 kΩ
Logistics
Country of origin IL
Customs tariff number 85331000
Original Packaging Reel with 5,000 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
