VS-30BQ100-M3/9AT | Vishay

Schottky rectifier diode, 100 V (RRM), 3 A, DO-214AB, VS-30BQ100-M3/9AT

Order No.: 28S9946
EAN: 4099879045829
MPN:
VS-30BQ100-M3/9AT
Series: VS
VS-30BQ100-M3/9AT Vishay Schottky Diodes

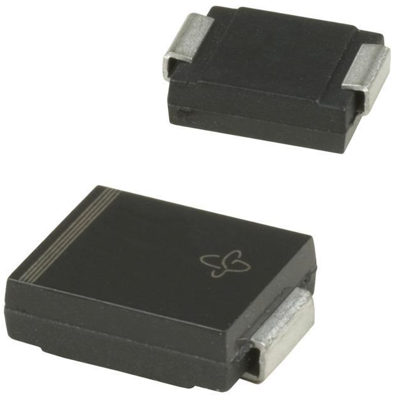

Image may differ
Unit Price (€ / pc.)
0.1964 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
687.23 € *
*incl. VAT plus shipping costs
Subject to prior sale
3500 pcs.
0.1964 €

Schottky diode, VS-30BQ100-M3/9AT, Vishay

The VS-30BQ100-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and small foot prints on PC boards.

Features

  • Low forward voltage drop
  • Guard ring for enhanced ruggedness and long term reliability
  • Small foot print, surface mountable
  • High frequency operation

Applications

  • Disk drives
  • Switch mode power supply
  • Converters
  • Free-wheeling diodes
  • Battery charging
  • Reverse battery protection
Technical specifications
Version schottky rectifier diode
Capacity 115 pF
max. operating temperature 175 °C
Forward Current 3 A
Enclosure DO-214AB
Number of diodes 1
Junction temperature (max.) 175 °C
min. operating temperature -55 °C
Assembly SMD
Voltage V RRM (peak reverse voltage) 100 V
Junction temperature (min.) -55 °C
Logistics
Country of origin CN
Original Packaging Reel with 3,500 pieces
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
