VS-10MQ060NTRPBF | Vishay

Schottky rectifier diode, 60 V (RRM), 1 A, DO-214AC, VS-10MQ060NTRPBF

Order No.: 28S9960
EAN: 4099879045843
MPN:
VS-10MQ060NTRPBF
Series: 10..
VS-10MQ060NTRPBF Vishay Schottky Diodes

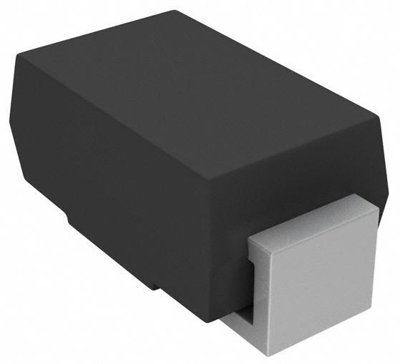

Image may differ
Unit Price (€ / pc.)
0.1618 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
1,213.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
7500 pcs.
0.1618 €

Schottky diode, VS-10MQ060NTRPBF, Vishay

The VS-10MQ060NTRPbF surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards.

Features

  • Small foot print, surface mountable
  • Low forward voltage drop
  • High frequency operation

Applications

  • Disk drives
  • Switch mode power supply
  • Converters
  • Free-wheeling diodes
  • Battery charging
  • Reverse battery protection
Technical specifications
Filter Property Value
Version schottky rectifier diode
Assembly SMD
Junction temperature (min.) -55 °C
Capacity 31 pF
Enclosure DO-214AC
min. operating temperature -55 °C
Junction temperature (max.) 150 °C
Number of diodes 1
max. operating temperature 150 °C
Forward Current 1 A
Voltage V RRM (peak reverse voltage) 60 V
Logistics
Property Value
Customs tariff number 85411000
Country of origin CN
Original Packaging Reel with 7,500 pieces
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
