VS-10BQ015-M3/5BT | Vishay

Schottky rectifier diode, 15 V (RRM), 1 A, DO-214AA, VS-10BQ015-M3/5BT

Order No.: 28S9935
EAN: 4099879045799
MPN:
VS-10BQ015-M3/5BT
Series: 10..
VS-10BQ015-M3/5BT Vishay Schottky Diodes

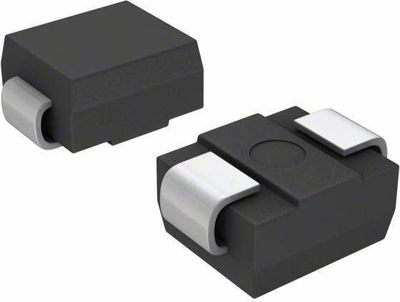

Image may differ
Unit Price (€ / pc.)
0.0274 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
27.37 € *
*incl. VAT plus shipping costs
Subject to prior sale
1000 pcs.
0.0274 €

Schottky diode, VS-10BQ015-M3/5BT, Vishay

The VS-10BQ015-M3 surface mount Schottky rectifier has been designed for applications requiring low forward drop and very small foot prints on PC boards. The proprietary barrier technology allows for reliable operation up to 125 °C junction temperature.

Features

  • Low forward voltage drop
  • Guard ring for enhanced ruggedness and long term reliability
  • Optimized for OR-ing applications
  • High frequency operation

Applications

  • Disk drives
  • Switch mode power supply
  • Converters
  • Free-wheeling diodes
  • Battery charging
  • Reverse battery protection
Technical specifications
Filter Property Value
Junction temperature (max.) 125 °C
Assembly SMD
max. operating temperature 150 °C
Version schottky rectifier diode
Capacity 390 pF
Number of diodes 1
Forward Current 1 A
Enclosure DO-214AA
Voltage V RRM (peak reverse voltage) 15 V
min. operating temperature -55 °C
Junction temperature (min.) -55 °C
Logistics
Property Value
Country of origin CN
Original Packaging Reel with 3,200 pieces
Customs tariff number 85411000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
