SS14-E3/61T | Vishay

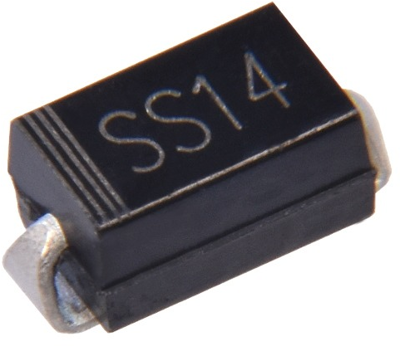

Schottky rectifier diode, 40 V (RRM), 1 A, DO-214AC, SS14-E3/61T
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0727 € *
Available: 1,193 pcs.
Total Price:
0.07 € *
Price list
Quantity
Price per unit*
1 pcs.
0.0727 €
25 pcs.
0.0678 €
100 pcs.
0.0637 €
*incl. VAT plus shipping costs
Subject to prior sale
Schottky diode, SS14-E3/61T, Vishay
Surface-mount Schottky barrier rectifier.
Features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power loss, high efficiency
- Low forward voltage drop
- High surge capability
Applications
- High frequency inverters
- Free-wheeling applications
- DC/DC converters
- Polarity protection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | schottky rectifier diode | |
| Enclosure | DO-214AC | |
| Voltage V RRM (peak reverse voltage) | 40 V | |
| Surge blocking voltage V RMS | 28 V | |
| Forward Current | 1 A | |
| Number of diodes | 1 | |
| Junction temperature (min.) | -65 °C | |
| Junction temperature (max.) | 150 °C | |
| Assembly | SMD | |
| min. operating temperature | -65 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | JP |
| Original Packaging | Reel with 7,500 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
