MBR20100CT-M3 | Vishay

Schottky rectifier diode, 100 V (RRM), 20 A, TO-220AB, MBR20100CT-M3

Order No.: 24S3524
EAN: 4099879045515
MPN:
MBR20100CT-M3
Series: MBR

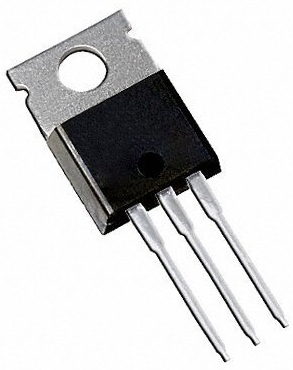

MBR20100CT-M3 Vishay Schottky Diodes Image 1

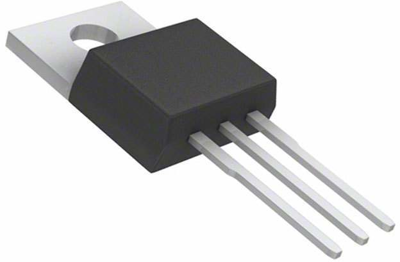

MBR20100CT-M3 Vishay Schottky Diodes Image 2

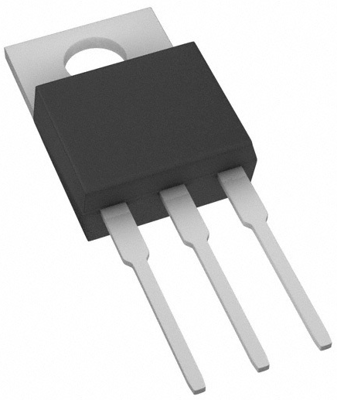

MBR20100CT-M3 Vishay Schottky Diodes Image 3
Image may differ
Unit Price (€ / pc.)
2.8798 € *
Available: 869 pcs.
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
10 pcs.
2.4038 €
100 pcs.
2.0587 €
250 pcs.
1.8802 €
1000 pcs.
1.7136 €
*incl. VAT plus shipping costs
Subject to prior sale

Schottky diode, MBR20100CT, Vishay

Dual high voltage trench MOS barrier Schottky rectifier.

Features

  • Trench MOS Schottky technology
  • Lower power losses, high efficiency
  • Low forward voltage drop
  • High forward surge capability
  • High frequency operation

Applications

  • High frequency rectifier of switching mode power supplies
  • Free-wheeling diodes
  • DC/DC converters
  • Polarity protection application
Technical specifications
Filter Property Value
Assembly THT
Forward Current 20 A
Junction temperature (max.) 150 °C
Capacity 600 pF
Enclosure TO-220AB
min. operating temperature -65 °C
Voltage V RRM (peak reverse voltage) 100 V
max. operating temperature 150 °C
Junction temperature (min.) -65 °C
Version schottky rectifier diode
Logistics
Property Value
Country of origin PH
Original Packaging Bar with 1,000 pieces
Customs tariff number 85411000
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
