40CPQ100 | Vishay

Schottky rectifier diode, 100 V (RRM), 40 A, TO-247AC, 40CPQ100

Order No.: 28S9950
EAN: 4099879045836
MPN:
40CPQ100
Series: 40CPQ
40CPQ100 Vishay Schottky Diodes

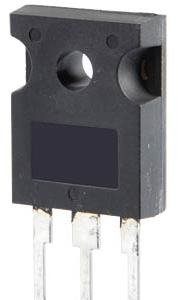

Image may differ
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 13 Weeks
Total Price:
940.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
500 pcs.
1.8802 €

Schottky diode, 40CPQ100, Vishay

The 40CPQ100 center tap Schottky rectifier has been optimized for low reverse leakage at high temperature. High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature.

Features

  • Low forward voltage drop
  • High frequency operation
  • Designed and qualified for industrial level

Applications

  • Low voltage high frequency inverters
  • High frequency inverters
  • Free-wheeling applications
  • DC/DC converters
  • Polarity protection applications
Technical specifications
Filter Property Value
Capacity 600 pF
Junction temperature (max.) 175 °C
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly THT
Number of diodes 2
Junction temperature (min.) -55 °C
Forward Current 40 A
Version schottky rectifier diode
Enclosure TO-247AC
Voltage V RRM (peak reverse voltage) 100 V
Logistics
Property Value
Customs tariff number 85411000
Original Packaging Bar with 25 pieces
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 6/8/11
