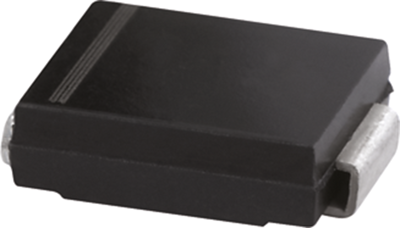

S3M-E3/57T | Vishay
Rectifier diode, 700 V, 3 A, DO-214AB, S3M-E3/57T
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1095 € *
Available: 124,100 pcs.
Total Price:
0.11 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1095 €
25 pcs.
0.1021 €
100 pcs.
0.0958 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD rectifier diodes, type Vishay S3.
Low leakage current. AEC-Q101 qualified. Rated current 3.0 A; Operating temperatures: –55 to +150 °C. Package: DO214AB (SMC).
Technical attributes (type, voltage (VRRM), voltage (VRMS)): S3M, VRRM 1000 V, VRMS 700 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | rectifier diode | |
| Enclosure | DO-214AB | |
| Rated blocking voltage | 1000 V | |
| Voltage V RRM (peak reverse voltage) | 1000 V | |
| Surge blocking voltage V RMS | 700 V | |
| Forward Current | 3 A | |
| Number of diodes | 1 | |
| Assembly | SMD | |
| Junction temperature (min.) | -55 °C | |
| Junction temperature (max.) | 150 °C | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 150 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
