S3G57T | Vishay

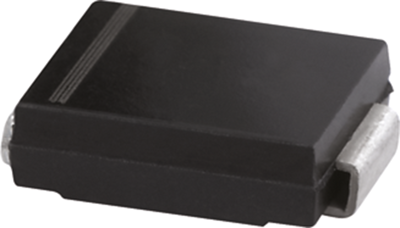

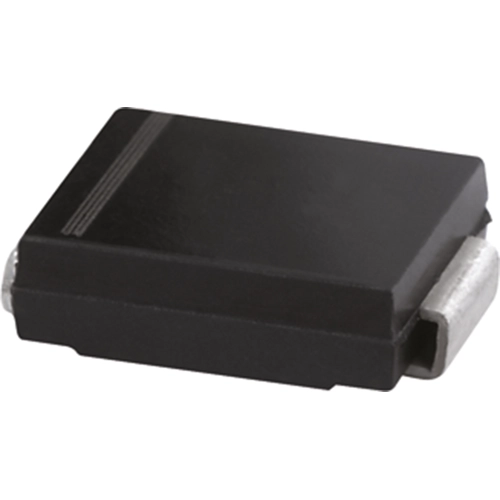

Rectifier diode, 280 V, 3 A, DO-214AB, S3G57T
Unit Price (€ / pc.)
0.2666 € *
Standard delivery time from the manufacturer is: 7 Weeks
SMD rectifier diodes, type Vishay S3.
Low leakage current. AEC-Q101 qualified. Rated current 3.0 A; Operating temperatures: –55 to +150 °C. Package: DO214AB (SMC).
Technical attributes (type, voltage (VRRM), voltage (VRMS)): S3G, VRRM 400 V, VRMS 280 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | DO-214AB | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| Forward Current | 3 A | |
| Rated blocking voltage | 400 V | |
| Assembly | SMD | |
| Surge blocking voltage V RMS | 280 V | |
| Junction temperature (max.) | 150 °C | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | glass passivated diode | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
