S3D57T | Vishay

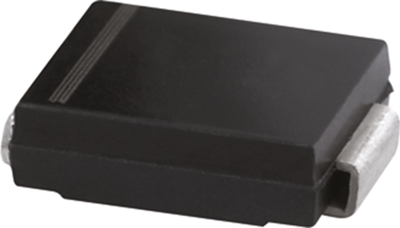

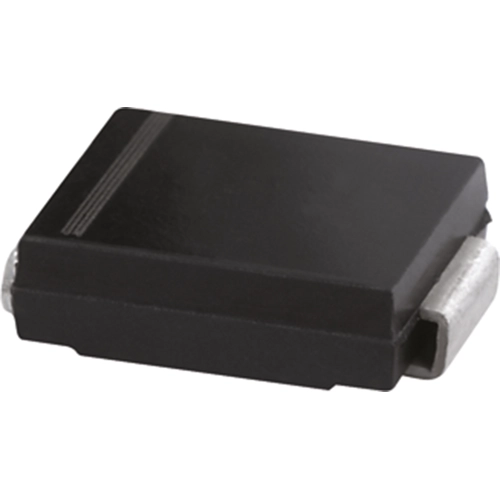

SMD rectifier diode, 140 V, 3 A, DO-214AB, S3D57T
Unit Price (€ / pc.)
0.4403 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.4403 €
50 pcs.
0.3451 €
250 pcs.
0.2820 €
1000 pcs.
0.2499 €
2000 pcs.
0.2261 €
*incl. VAT plus shipping costs
Subject to prior sale
SMD rectifier diodes, type Vishay S3.
Low leakage current. AEC-Q101 qualified. Rated current 3.0 A; Operating temperatures: –55 to +150 °C. Package: DO214AB (SMC).
Technical attributes (type, voltage (VRRM), voltage (VRMS)): S3D, VRRM 200 V, VRMS 140 V
Technical specifications
| Rated blocking voltage | 200 V | |
| Assembly | SMD | |
| Enclosure | DO-214AB | |
| Forward Current | 3 A | |
| Version | glass passivated diode | |
| Junction temperature (max.) | 150 °C | |
| min. operating temperature | -55 °C | |
| Voltage V RRM (peak reverse voltage) | 200 V | |
| Surge blocking voltage V RMS | 140 V | |
| max. operating temperature | 150 °C | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
