S1A61T | Vishay

Rectifier diode, 35 V, 1 A, DO-214AC, S1A61T

Order No.: 26S9200
EAN: 4099879043719
MPN:
S1A61T
Series: S1

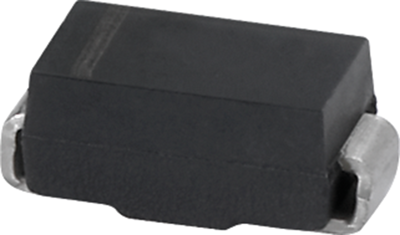

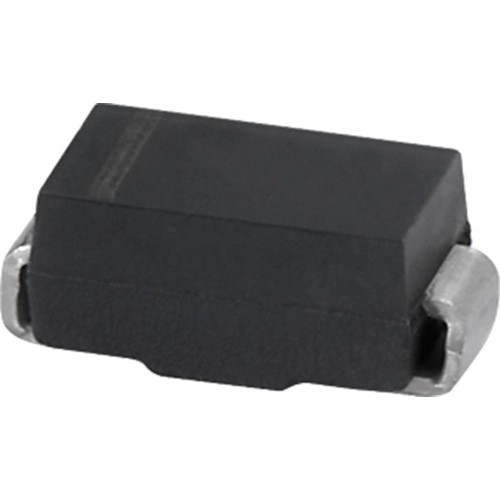

S1A61T Vishay Rectifier Diodes
Image may differ
Unit Price (€ / pc.)
0.0631 € *
Standard delivery time from the manufacturer is: 7 Weeks
Total Price:
454.10 € *
*incl. VAT plus shipping costs
Subject to prior sale
7200 pcs.
0.0631 €

SMD rectifier diodes, type Vishay S1.

Low leakage current, AEC-Q101 qualified. Rated current 1.0 A; Operating temperatures: –55 to +150 °C. Package: DO214AC (SMA).

Technical attributes (type, voltage (VRRM), voltage (VRMS)): S1A, VRRM 50 V, VRMS 35 V

Technical specifications
Filter Property Value
min. operating temperature -55 °C
max. operating temperature 150 °C
Junction temperature (min.) -55 °C
Junction temperature (max.) 150 °C
Enclosure DO-214AC
Assembly SMD
Number of diodes 1
Voltage V RRM (peak reverse voltage) 50 V
Surge blocking voltage V RMS 35 V
Rated blocking voltage 50 V
Forward Current 1 A
Version glass passivated diode
Logistics
Property Value
Customs tariff number 85411000
Country of origin TW
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
Substance description Lead
