RS2G-E3/52T | Vishay

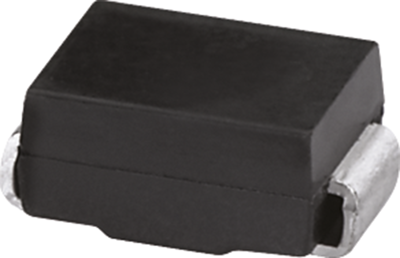

Rectifier diode, 280 V, 1.5 A, DO-214AA, RS2G-E3/52T
Unit Price (€ / pc.)
0.0547 € *
Standard delivery time from the manufacturer is: 7 Weeks
SMD rectifier diodes, type Vishay RS2.
High-speed switching for high efficiency. Rated current 1.5 A; Operating temperatures: –55 to +150 °C. Package: DO214AA (SMB).
Technical attributes (type, voltage (VRRM), voltage (VRMS)): RS2G, VRRM 400 V, VRMS 280 V
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | DO-214AA | |
| Voltage V RRM (peak reverse voltage) | 400 V | |
| Forward Current | 1.5 A | |
| Rated blocking voltage | 400 V | |
| Assembly | SMD | |
| Surge blocking voltage V RMS | 280 V | |
| Junction temperature (max.) | 150 °C | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Version | fast switching diode | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85411000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
