ES1PBM84A | Vishay

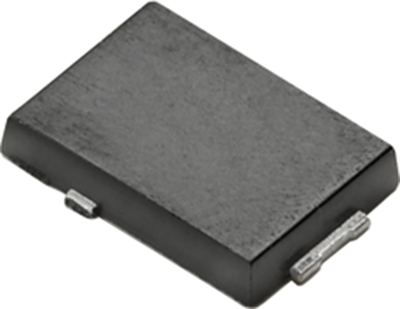

SMD rectifier diode, 100 V, 1 A, DO214AA
Order No.: 26S9920
EAN: 4099879043856
MPN:
ES1PBM84A
Unit Price (€ / pc.)
0.0583 € *
Standard delivery time from the manufacturer is: On Request
Ultrafast SMD rectifier diodes, type Vishay ES1P.
Low power losses and thermal resistance, low height (1.0 mm), AEC-Q101 qualified. Rated current 1.0 A; Operating temperatures: –55 to +150 °C. Package: DO214AA (SMP).
Technical attributes (type, voltage (VRRM)): ES1PB, VRRM 100 V
Technical specifications
| Assembly | SMD | |
| Enclosure | DO-220AA | |
| Forward Current | 1 A | |
| Number of diodes | 1 | |
| Version | ultrafast diode | |
| Junction temperature (max.) | 150 °C | |
| min. operating temperature | -55 °C | |
| Voltage V RRM (peak reverse voltage) | 100 V | |
| max. operating temperature | 150 °C | |
| Junction temperature (min.) | -55 °C |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85411000 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
