P16NP472MAB15 | Vishay
Cermet potentiometer with knob, 4.7 kΩ, 1 W, linear, solder lug, P16NP472MAB15
Unit Price (€ / pc.)
14.7798 € *
Available: 7 pcs.
Total Price:
14.78 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7798 €
5 pcs.
13.6731 €
10 pcs.
12.9115 €
25 pcs.
12.1737 €
50 pcs.
11.6025 €
*incl. VAT plus shipping costs
Subject to prior sale

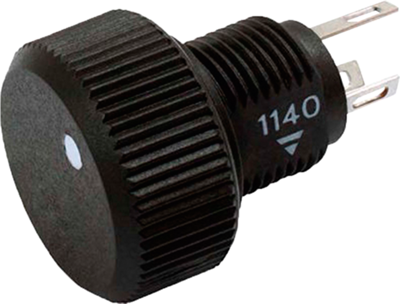

Knob potentiometer, P16NP472MAB15, Vishay
Incorporating a cermet potentiometer, this knob features a distinctive design. The back side of the panel is solely occupied by the mounting hardware and terminals, ensuring a minimal required clearance.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Mechanic rotary range | 300 ° | |
| Power | 1 W | |
| max. number of revolutions | 1 | |
| Connection | solder lug | |
| max. operating temperature | 85 °C | |
| axle diameter | 16 mm | |
| Rotary range, electrical | 270 ° | |
| Length | 24.3 mm | |
| Assembly | straight | |
| Width | 16 mm | |
| min. operating temperature | -40 °C | |
| Track Taper | linear | |
| ohmic resistance | 4.7 kΩ | |
| Version | cermet potentiometer with knob |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Original Packaging | Bar with 20 pieces |
| Customs tariff number | 85334010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
