P16NP222MAB15 | Vishay

Cermet potentiometer with knob, 2.2 kΩ, 1 W, linear, solder lug, P16NP222MAB15

Order No.: 67E805
EAN: 4099879970640
MPN:
P16NP222MAB15
Series: P16

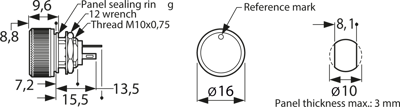

P16NP222MAB15 Vishay Potentiometers Image 1

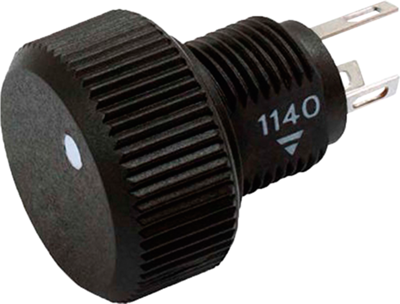

P16NP222MAB15 Vishay Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
12.5902 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
251.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
12.5902 €

Knob potentiometer, P16NP222MAB15, Vishay

Incorporating a cermet potentiometer, this knob features a distinctive design. The back side of the panel is solely occupied by the mounting hardware and terminals, ensuring a minimal required clearance.

Technical specifications
Filter Property Value
Track Taper linear
Assembly straight
Power 1 W
Connection solder lug
Mechanic rotary range 300 °
max. operating temperature 85 °C
Version cermet potentiometer with knob
max. number of revolutions 1
Width 16 mm
ohmic resistance 2.2 kΩ
Rotary range, electrical 270 °
min. operating temperature -40 °C
axle diameter 16 mm
Length 24.3 mm
Logistics
Property Value
Country of origin CZ
Original Packaging Bar with 20 pieces
Customs tariff number 85334010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
