P16NP104MAB15 | Vishay

Cermet potentiometer with knob, 100 kΩ, 1 W, linear, solder lug, P16NP104MAB15

Order No.: 67E810
EAN: 4099879970671
MPN:
P16NP104MAB15
Series: P16

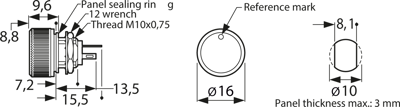

P16NP104MAB15 Vishay Potentiometers Image 1

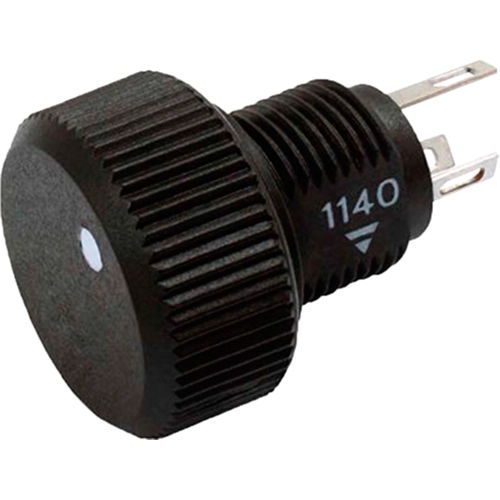

P16NP104MAB15 Vishay Potentiometers Image 2
Image may differ
Unit Price (€ / pc.)
12.6021 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
252.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
20 pcs.
12.6021 €

Knob potentiometer, P16NP104MAB15, Vishay

Incorporating a cermet potentiometer, this knob features a distinctive design. The back side of the panel is solely occupied by the mounting hardware and terminals, ensuring a minimal required clearance.

Technical specifications
Filter Property Value
Track Taper linear
Assembly straight
Power 1 W
Connection solder lug
Mechanic rotary range 300 °
max. operating temperature 85 °C
Version cermet potentiometer with knob
max. number of revolutions 1
Width 16 mm
ohmic resistance 100 kΩ
Rotary range, electrical 270 °
min. operating temperature -40 °C
axle diameter 16 mm
Length 24.3 mm
Logistics
Property Value
Country of origin CZ
Original Packaging Bar with 20 pieces
Customs tariff number 85334010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
