TEPT5700 | Vishay

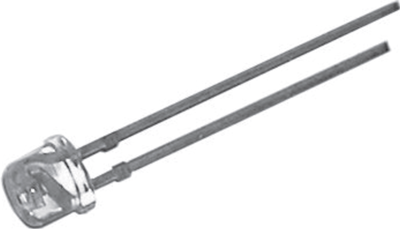

Photo transistor, TEPT5700
Unit Price (€ / pc.)
0.4165 € *
Standard delivery time from the manufacturer is: 6 Weeks
Photo transistors, type Vishay TEPT5700.
High photo sensitivity, round design (5.0 mm); Collector-emitter voltage: 6.0 V. Collector current: 20 mA. Operating temperatures: –40 to +85 °C.
Technical attributes (type, current (IPCE), detection range, spectral range of photo sensitivity): TEPT5700, 75 µA, 50°, 440 to 800 nm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Voltage | 6 V | |
| Wavelength | 570 nm | |
| Power loss | 100 mW | |
| Enclosure | T1 3/4 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 4,000 pieces |
| MSL | MSL 1 |
| Country of origin | PH |
| Customs tariff number | 85414900 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
