VO617A-3 | Vishay

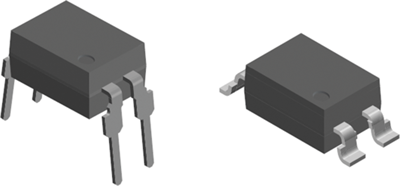

Vishay optocoupler, DIP-4, VO617A-3
Unit Price (€ / pc.)
0.0985 € *
Standard delivery time from the manufacturer is: 10 Weeks
Optocoupler, VO617A-3, VISHAY
The VO617A-3 features a high current transfer ratio, low coupling capacitance and high isolation voltage. This product has a GaAs infrared emitting diode, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 package. The coupling device is designed for signal transmission between two electrically separated circuits.
Features
- Good CTR linearity depending on forward current
- Low saturation voltage
- Fast switching times
- Low CTR degradation
- Low coupling capacitance
- High common mode interference immunity
Applications
- AC adapters
- SMPS
- PLC
- Factory automation
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of channels | 1 | |
| max. operating temperature | 110 °C | |
| Rise time | 20 s | |
| min. operating temperature | -55 °C | |
| Output current | 50 mA | |
| Enclosure | DIP-4 | |
| Isolation voltage | 5.3 kV | |
| Assembly | THT | |
| Fall time | 2 s |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 100 pieces |
| Customs tariff number | 85414900 |
| MSL | MSL 1 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
