SFH617A-4 | Vishay

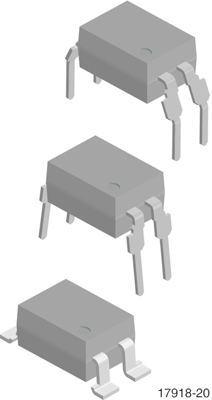

Vishay optocoupler, DIP-4, SFH617A-4
Unit Price (€ / pc.)
0.1952 € *
Available in 5 Days: 2,575 pcs. - if ordered today
Optocoupler, SFH617A-4, VISHAY
The SFH617A-4 features a high current transfer ratio, low coupling capacitance and high isolation voltage. This product has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 package. The coupling device is designed for signal transmission between two electrically separated circuits.
Features
- Good CTR linearity depending on forward current
- Low saturation voltage
- Fast switching times
- Low CTR degradation
- Temperature stable
- Low coupling capacitance
- High common mode interference immunity
Applications
- AC adapter
- SMPS
- PLC
- Factory automation
- Game consoles
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rise time | 2 s | |
| max. operating temperature | 110 °C | |
| min. operating temperature | -55 °C | |
| Output current | 50 mA | |
| Isolation voltage | 5.3 kV | |
| Fall time | 2 s | |
| Enclosure | DIP-4 | |
| Number of channels | 1 | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Customs tariff number | 85414900 |
| Original Packaging | Bar with 100 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
