SFH615A-4 | Vishay

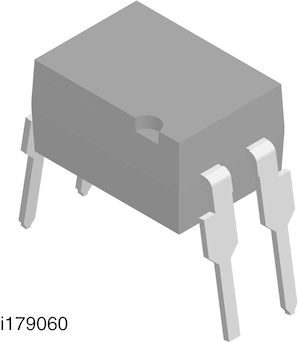

Vishay optocoupler, DIP-4, SFH615A-4
Unit Price (€ / pc.)
0.2237 € *
Available in 5 Days: 750 pcs. - if ordered today
Optocoupler, SFH615A-4, VISHAY
The SFH615A-4 features a variety of transfer ratios, low coupling capacitance and high isolation voltage. This product has a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-4 package. The coupling device is designed for signal transmission between two electrically separated circuits.
Features
- Fast switching times
- Low CTR degradation
- Low coupling capacitance
Applications
- Switchmode power supply
- Telecom
- Battery powered equipment
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| Fall time | 2 s | |
| min. operating temperature | -55 °C | |
| Rise time | 2 s | |
| Isolation voltage | 5.3 kV | |
| Enclosure | DIP-4 | |
| Assembly | THT | |
| Number of channels | 1 | |
| Output current | 50 mA |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bar with 100 pieces |
| Customs tariff number | 85414900 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
