SFH601-3 | Vishay

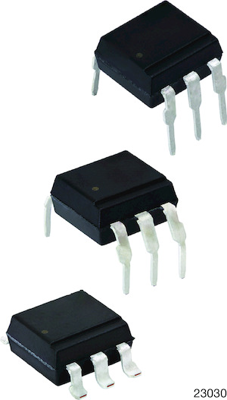

Vishay optocoupler, DIP-6, SFH601-3
Unit Price (€ / pc.)
0.7378 € *
Available: 77 pcs.
Total Price:
7.38 € *
Price list
Quantity
Price per unit*
10 pcs.
0.7378 €
50 pcs.
0.6426 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, SFH601-3, VISHAY
The SFH601-3 has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic DIP-6 package. It features a high current transfer ratio, low coupling capacitance, and high isolation voltage. The coupling device is designed for signal transmission between two electrically separated circuits.
Features
- Low coupling capacitance
- High common mode transient immunity
Applications
- Telecom
- Industrial controls
- Battery powered equipment
- Office machines
- Programmable controllers
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 5.3 kV | |
| max. operating temperature | 100 °C | |
| Number of channels | 1 | |
| Fall time | 2 s | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Output current | 50 mA | |
| Enclosure | DIP-6 | |
| Rise time | 2 s |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85414900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
