SFH600-3 | Vishay
Vishay optocoupler, DIP-6, SFH600-3
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: On Request

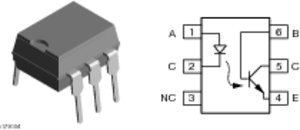

Optocoupler, SFH600-3, VISHAY
The SFH600-3 is an optocoupler with a GaAs LED emitter which is optically coupled with a silicon planar phototransistor detector. The component is packaged in a plastic plug-in case, 20 AB DIN 41866. The coupler transmits signals between two electrically isolated circuits. The potential difference between the circuits to be coupled should not exceed the maximum permissible insulating voltage.
Features
- Built to conform to VDE requirements
- High quality premium device
- Long term stability
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| Rise time | 2 s | |
| max. operating temperature | 100 °C | |
| Assembly | THT | |
| Output current | 50 mA | |
| Enclosure | DIP-6 | |
| Number of channels | 1 | |
| Isolation voltage | 5.3 kV | |
| Fall time | 2.5 s |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414900 |
| Country of origin | PH |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
