SFH1690AT | Vishay

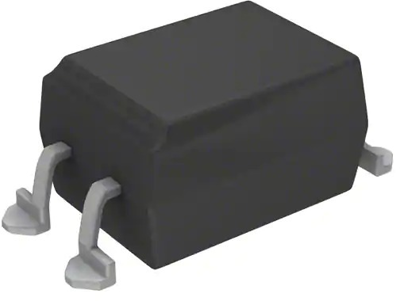

Vishay optocoupler, SOP-4, SFH1690AT
Unit Price (€ / pc.)
1.0472 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
50 pcs.
1.0234 €
250 pcs.
0.9996 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, SFH1690AT, VISHAY
The SFH1690AT has a GaAs infrared emitting diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a 4 pin 100 mil lead pitch miniflat package. It features a high current transfer ratio, low coupling capacitance, and high isolation voltage. The coupling device is designed for signal transmission between two electrically separated circuits.
Features
- Low saturation voltage
- Fast switching times
- Low coupling capacitance
Applications
- PLCs
- Telecommunication
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 3.75 kV | |
| max. operating temperature | 110 °C | |
| Number of channels | 1 | |
| Fall time | 4 s | |
| Assembly | SMD | |
| min. operating temperature | -55 °C | |
| Output current | 50 mA | |
| Enclosure | SOP-4 | |
| Rise time | 5 s |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Reel with 2,000 pieces |
| Customs tariff number | 85414900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
