ILQ615-4 | Vishay

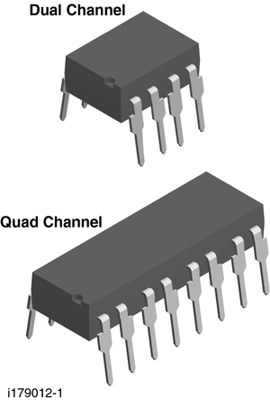

Vishay optocoupler, DIP-16, ILQ615-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.3685 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
34.21 € *
Price list
Quantity
Price per unit*
25 pcs.
1.3685 €
100 pcs.
1.2852 €
250 pcs.
1.2019 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, ILQ615-4, VISHAY
The ILQ615-4 is a ulti-channel phototransistor optocoupler that use GaAs IRED emitters and high gain NPN phototransistors. This product is constructed using over / under leadframe optical coupling and double molded insulation technology resulting a withstand test voltage of 7500 VACPEAK and a working voltage of 1700 VRMS. Eliminating the phototransistor base connection provides added electrical noise immunity from the transients found in many industrial control environments.
Features
- Identical channel to channel footprint
- Reduced board space
- Lower pin and parts count
- Better channel to channel CTR match
- Improved common mode rejection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | THT | |
| Enclosure | DIP-16 | |
| Number of channels | 4 | |
| Isolation voltage | 5.3 kV | |
| Output current | 50 mA | |
| Rise time | 2 s | |
| Fall time | 2 s | |
| min. operating temperature | -55 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414900 |
| Country of origin | CN |
| MSL | MSL 1 |
| Original Packaging | Bar with 25 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
