IL420 | Vishay

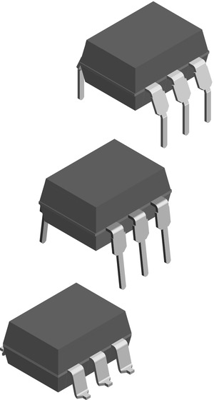

Vishay optocoupler, DIP-6, IL420
Unit Price (€ / pc.)
2.1182 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
2.12 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1182 €
50 pcs.
1.9635 €
250 pcs.
1.8088 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, IL420, VISHAY
The IL420 consists of an optically coupled GaAs IRLED to a photosensitive thyristor system with integrated noise suppression and non-zero crossing functionality. The thyristor system enables low trigger currents of 1 mA and features a dV/dt ratio of greater than 10 kV/μs and load voltages up to 800 V.
Applications
- Solid-state relay
- Lighting controls
- Temperature controls
- Solenoid / valve controls
- AC motor drives / starters
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Enclosure | DIP-6 | |
| Number of channels | 1 | |
| Assembly | THT | |
| max. operating temperature | 100 °C | |
| min. operating temperature | -55 °C | |
| Isolation voltage | 5.3 kV |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414900 |
| Country of origin | MY |
| Original Packaging | Bar with 50 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
