IL217AT | Vishay

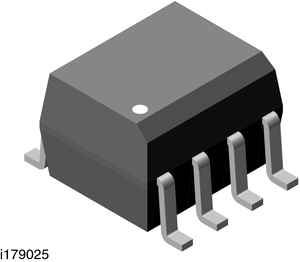

Vishay optocoupler, SOIC-8, IL217AT
Unit Price (€ / pc.)
0.4522 € *
Standard delivery time from the manufacturer is: 6 Weeks
Optocoupler, IL217AT, VISHAY
The IL217AT is optically couple pair with a gallium arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. This product comes in a standard SOIC-8 small outline package for surface mounting which makes it ideally suited for high density applications with limited space.
In addition to eliminating through hole requirements, this package conforms to standards for surface mounted devices. The high CTR at low input current is designed for low power consumption requirements such as CMOS microprocessor interfaces.
Features
- High current transfer ratio
- Compatible with dual wave, vapor phase and IR reflow soldering
Technical specifications
| Filter | Property | Value |
|---|---|---|
| min. operating temperature | -55 °C | |
| Rise time | 3 s | |
| max. operating temperature | 100 °C | |
| Assembly | SMD | |
| Enclosure | SOIC-8 | |
| Number of channels | 1 | |
| Isolation voltage | 4 kV | |
| Fall time | 3 s |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85414900 |
| Country of origin | MY |
| Original Packaging | Reel with 2,000 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
