H11A1 | Vishay

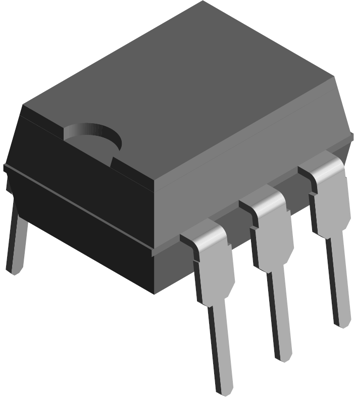

Vishay optocoupler, DIP-6, H11A1
Discontinued
Unit Price (€ / pc.)
0.3070 € *
Available: 1,581 pcs.
Total Price:
0.31 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3070 €
100 pcs.
0.2213 €
*incl. VAT plus shipping costs
Subject to prior sale
Optocoupler, H11A1, VISHAY
The H11A1 is an industry standard single channel phototransistor coupler. Each optocoupler consists of gallium arsenide infrared LED and a silicon NPN phototransistor. The isolation performance is accomplished through Vishay double molding isolation manufacturing process.
Features
- Interfaces with common logic families
- Industry standard dual-in line 6-pin package
Applications
- AC mains detection
- Reed relay driving
- Switch mode power supply feedback
- Telephone ring detection
- Logic ground isolation
- Logic coupling with high frequency noise rejection
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 5.3 kV | |
| max. operating temperature | 100 °C | |
| Number of channels | 1 | |
| Fall time | 3 s | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Output current | 50 mA | |
| Enclosure | DIP-6 | |
| Rise time | 3 s |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 50 pieces |
| Customs tariff number | 85414900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
