6N136 | Vishay

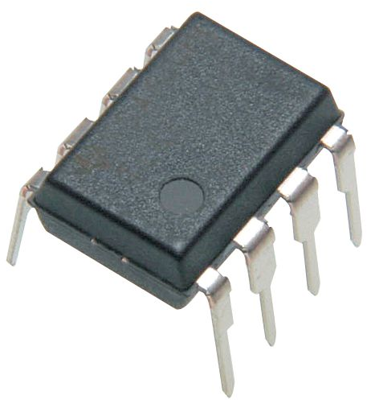

Vishay optocoupler, DIP-8, 6N136
Order No.: 69S3294
EAN: 4099879002198
MPN:
6N136
Unit Price (€ / pc.)
1.6660 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
50 pcs.
1.4637 €
250 pcs.
1.2733 €
1000 pcs.
1.1067 €
2500 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale
High Speed Optocoupler, 6N136, Vishay
The 6N136 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high speed transistor in a DIP-8 plastic package. A signal can be transmitted between two electrically separated circuits up to a frequency of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltage.
Features
- TTL compatible
- High common-mode interference immunity
- Open-collector output
- External base wiring possible
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolation voltage | 5.3 kV | |
| max. operating temperature | 100 °C | |
| Number of channels | 1 | |
| Assembly | THT | |
| min. operating temperature | -55 °C | |
| Output current | 8 mA | |
| Enclosure | DIP-8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MY |
| Original Packaging | Bar with 50 pieces |
| MSL | MSL 1 |
| Customs tariff number | 85414900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
