SUM70030E-GE3 | Vishay

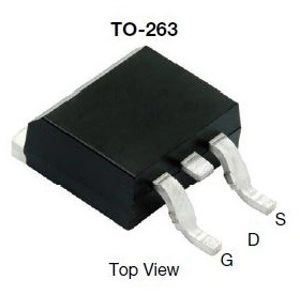

VISHAY SMD MOSFET NFET 100V 150A 2,88mΩ 175°C D2PAK SUM70030E-GE3
Active
Total price
(
3.5700 €
* / pcs.)
3.57 €
Currently not in stock, we will order for you
Quantity
Price per unit*
1 pcs.
3.5700 €
5 pcs.
3.2130 €
25 pcs.
2.9274 €
100 pcs.
2.7727 €
200 pcs.
2.6299 €
*incl. VAT plus
shipping costs
Please send price/quantity requests to info@buerklin.com
Description
Product by Vishay at Bürklin Elektronik
Transistor, SUM70030E-GE3, Vishay
Features
- Maximum 175 °C junction temperature
- Very low Qgd reduces power loss from passing through Vplateau
- 100 % Rg and UIS tested
Technical specifications
| Version | N channel | |
| drain-source on resistance RDS (on) max @VGS=10V | 0.00288 Ω | |
| Gate Charge Qg @10V (nC) | 1.424x10<sup>-7</sup> C | |
| Enclosure | D2PAK | |
| max. Voltage | 100 V | |
| Max. current | 150 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Power loss | 375 W |
Logistics
| Country of origin | CN |
| Customs tariff number | 85412900 |
| MSL | MSL 3 |
| Original Packaging | Reel with 800 pieces |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
