MOSFET NFET s series IRL.

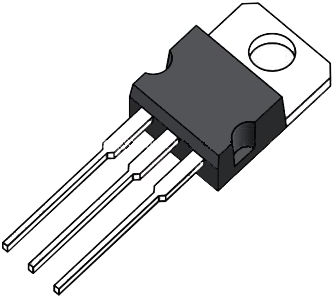

Type: IRLZ14, TO220AB
Version | N channel | |
drain-source on resistance RDS (on) max @VGS=10V | 200 mΩ | |
Gate Charge Qg @10V (nC) | 8.4x10<sup>-9</sup> C | |
Enclosure | TO-220 | |
max. Voltage | 60 V | |
Max. current | 10 A | |
max. operating temperature | 175 °C | |
min. operating temperature | -55 °C | |
Assembly | THT | |
Power loss | 43 W |
Country of origin | MX |
Customs tariff number | 85412900 |
Original Packaging | Bar with 50 pieces |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
