IRF9540-PBF | Vishay

Name: Vishay P-channel power MOSFET, -100 V, -19 A, TO-220, IRF9540-PBF
Brand: Vishay
SKU: 24S3276
Price: 0.97 EUR
Availability: InStock

Vishay P-channel power MOSFET, -100 V, -19 A, TO-220, IRF9540-PBF

Order No.: 24S3276

EAN: 4099879033291

MPN:

IRF9540-PBF

Series: IRF

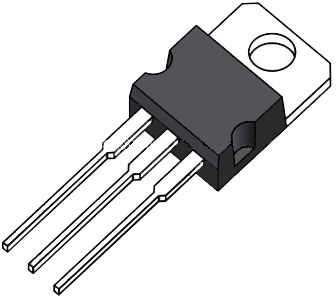

Image may differ

Key Specification:

Version P-channel

max. Voltage -100 V

Max. current -19 A

drain-source on resistance RDS (on) max @VGS=10V 200 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.9651 € *

Available: 845 pcs.

Leadtime: On Request **

Total Price:

0.97 € *

Price list

Quantity

Price per unit*

1 pcs.

0.9651 €

100 pcs.

0.8580 €

1000 pcs.

0.6783 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Transistors series IRF.

Technical attributes (type, package, manufacturer): IRF9540, TO220AB, Vishay

Technical specifications

	Version	P-channel
	drain-source on resistance RDS (on) max @VGS=10V	200 mΩ
	Gate Charge Qg @10V (nC)	6.1x10<sup>-8</sup> C
	Enclosure	TO-220
	max. Voltage	-100 V
	Max. current	-19 A
	max. operating temperature	175 °C
	min. operating temperature	-55 °C
	Assembly	THT
	Power loss	150 W
