TLUY2401 | Vishay

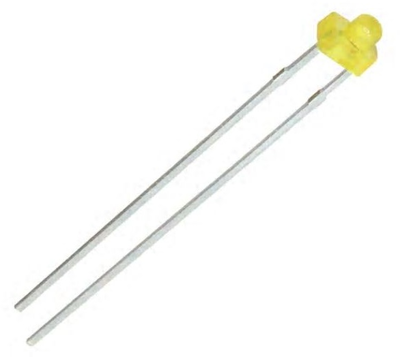

LED, THT, Ø 1.8 mm, yellow, 585 nm, 2.5 to 6 mcd, 40°, TLUY2401
Unit Price (€ / pc.)
0.3094 € *
Available: 9,952 pcs.
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
10 pcs.
0.3094 €
100 pcs.
0.2618 €
500 pcs.
0.2261 €
1000 pcs.
0.1785 €
5000 pcs.
0.1428 €
*incl. VAT plus shipping costs
Subject to prior sale
Universal LED, TLUY2401, VISHAY
The TLUY2401 is a universal LED with Ø 1.8 mm tinted diffused miniplast package.
Features
- Three colors
- For DC and pulse operatio
- Luminous intensity categorized
Applications
- General indicating and lighting purposes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Wavelength | 585 nm | |
| min. operating temperature | -40 °C | |
| Number of LEDs | 1 | |
| Light intensity min. | 0.0025 cd | |
| Colour of the LED | yellow | |
| Lens | yellow | |
| diameter | 1.8 mm | |
| max. operating temperature | 100 °C | |
| Forward Current | 30 mA | |
| Length | 3.3 mm | |
| Radiation angle | 40 ° | |
| On-State Voltage | 3 V | |
| Light intensity typ. | 0.006 cd | |
| Width | 2.4 mm | |
| Assembly | THT |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Bulk with 5,000 pieces |
| Country of origin | MY |
| Customs tariff number | 85414100 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
