TLUG2400 | Vishay
LED, THT, Ø 1.8 mm, green, 565 nm, 1.6 mcd to 0.01 cd, 40°, TLUG2400
Unit Price (€ / pc.)
0.4046 € *
Available: 484 pcs.
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4046 €
50 pcs.
0.3332 €
100 pcs.
0.2939 €
500 pcs.
0.2594 €
1000 pcs.
0.2356 €
*incl. VAT plus shipping costs
Subject to prior sale
Universal LED, TLUG2400, VISHAY

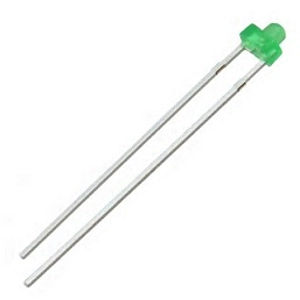

The TLUG2400 is a universal LED with Ø 1.8 mm tinted diffused miniplast package.
Features
- Three colors
- For DC and pulse operatio
- Luminous intensity categorized
Applications
- General indicating and lighting purposes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| On-State Voltage | 3 V | |
| Assembly | THT | |
| diameter | 1.8 mm | |
| Width | 2.4 mm | |
| Forward Current | 30 mA | |
| Length | 3.3 mm | |
| Wavelength | 565 nm | |
| Number of LEDs | 1 | |
| min. operating temperature | -40 °C | |
| Lens | green | |
| Colour of the LED | green | |
| max. operating temperature | 100 °C | |
| Radiation angle | 40 ° | |
| Light intensity min. | 0.0016 cd | |
| Light intensity typ. | 0.01 cd |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | PH |
| Customs tariff number | 85414100 |
| Original Packaging | Bulk with 5,000 pieces |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
