VSMB2948SL | Vishay

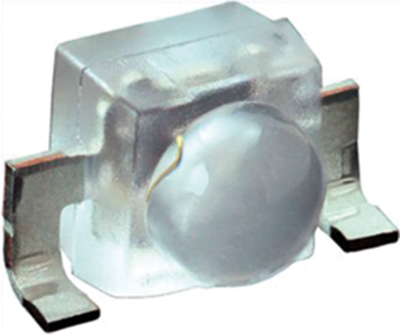

Infrared LED, VSMB2948SL
Unit Price (€ / pc.)
0.2118 € *
Standard delivery time from the manufacturer is: 6 Weeks
IR LEDs, type Vishay VSMB2948SL.
High-speed, high radiated power and radiation intensity, low forward voltage; Dimensions: 2.3 x 2.55 x 2.3 mm. Operating temperatures: –40 to +85 °C.
Technical attributes (type, wavelength, radiation angle): VSMB2948SL, 940 nm, ±25°
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Forward Current | 100 mA | |
| Wavelength | 940 nm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C | |
| Radiation angle | 50 ° | |
| Power loss | 160 mW | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 3,000 pieces |
| MSL | MSL 2A |
| Customs tariff number | 85414100 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
