VEMD2020X01 | Vishay

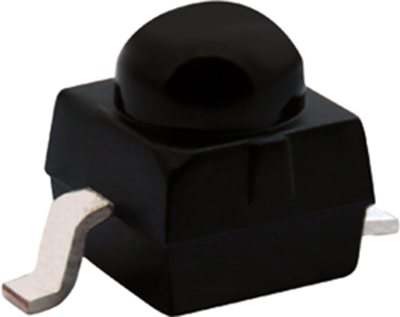

Silicon PIN diode, VEMD2020X01
Unit Price (€ / pc.)
0.1464 € *
Standard delivery time from the manufacturer is: 8 Weeks
Silicon PIN photo diodes, type Vishay VEMD20..
Very sensitive high-speed PIN photo diodes, with daylight filter, AEC-Q101 qualified.
Strom (Ira): 12 µA
Detection range: ±15°
Spectral range of photo sensitivity: 750 to 1050 nm
Design: gullwing
Operating temperatures (min.): - 40 °C
Operating temperatures (max.): 100 °C
Dimensions: 2.3 x 2.3 x 2.8 mm
Type: VEMD2020X01
Manufacturer: Vishay
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Forward Current | 50 mA | |
| Wavelength | 940 nm | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C | |
| Power loss | 215 mW | |
| Assembly | SMD |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 6,000 pieces |
| MSL | MSL 2A |
| Customs tariff number | 85414100 |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
