VBP104SR | Vishay
Silicon PIN diode, VBP104SR
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.1190 € *
Available: 756 pcs.
Total Price:
0.12 € *
Price list
Quantity
Price per unit*
1 pcs.
0.1190 €
50 pcs.
0.0952 €
200 pcs.
0.0714 €
*incl. VAT plus shipping costs
Subject to prior sale

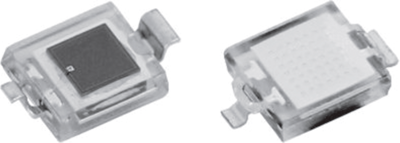

Silicon PIN photo diodes, type Vishay VBP104SR.
Dimensions: 6.4 x 3.9 x 1.2 mm. Operating temperatures: –40 to +100 °C. Package: reverse gullwing.
Technical attributes (type, current (Ira), detection angle, spectral range of photo sensitivity): VBP104SR, 35 µA, ±65°, 430 to 1100 nm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | SMD | |
| Wavelength | 940 nm | |
| Forward Current | 50 mA | |
| Power loss | 215 mW | |
| Radiation angle | 130 ° | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Original Packaging | Reel with 1,000 pieces |
| Country of origin | PH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
